Biogas Generator Set

←

→

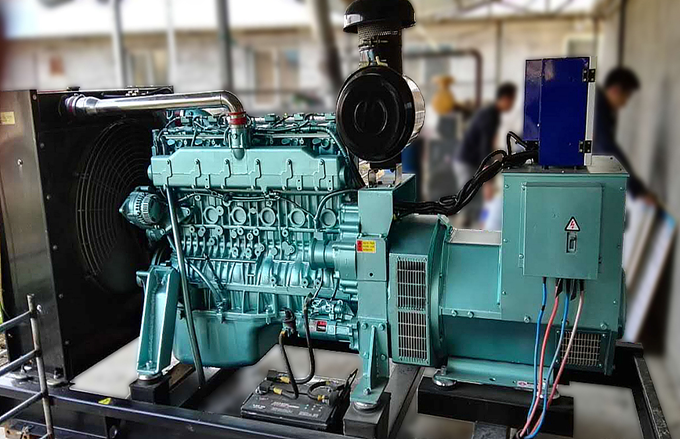

SDS200-B Biogas Generator Set

Rated power：200KW
Engine model：Sinotruk T12
Rated voltage：400/230
Rated frequency：50/60Hz
Rated rpm：1500/1800rpm

Tel：86 531 88985813

The engine is original gas engine which is from China’s biggest heavy-duty trucks manufacturer -- SINOTRUK. Engine’s technology is mature and reliable makes it enjoy a good reputation in the industry.

Technical Parameter

Generator Set	Type	SDS200-B
	ekW	200
	ηel(%)	38
	LxWxH(mm)	3150x1400x1880
	Weight(kg)	2500
Engine	Type	Sinotruk T12
	BorexStock(mm)	126x155
	Displacement(L)	12
	Speed (rpm)	1500(50Hz)
	Speed (rpm)	1800(60Hz)
	Starting Mode	24V DC Electric starting system
	Cooling Type	Closed water cooling
	Governing Type	Electronic governor
Alternator	Type	KF
	Rated Voltage (V)	400/230
	Current (A)	451
	Power Factor	0.8(Lagging)
	Phase and Connection	3 phases 4 wire, Y-connection
	Excitation	Brushless
	V-regulator	Automatic
Control Panel	Feature	Powered by 24 volts DC , degree of protection IP54, lockable hinged door, start/stop control switch, Voltage adjustment
	Data View	RPM, operating hours, total generating capacity, oil pressure, coolant temperature, DC voltage, Hz , ekW, voltage ,pf, exhaust temperature, Engine cylinder temperature
	Protection Function	Low oil pressure; high coolant temperature; high oil temperature, overspeed, emergency stop, under/over voltage, under/over frequency, overcurrent, reverse power,
	Spare	Spare indicator LEDs, spare alarm/shutdown inputs

Requirements for biogas

No.	Gas component	Range
1	Temerature	≤40°
2	Pressure	3kpa-20kpa
3	Pressure variation rate	≤1kpa/min
4	CH₄ content	≥50%
5	H₂S content	≤200mg/Nm³
6	NH₃ content	≤20mg/Nm³
7	Impurity size	≤5μm
8	Impurity content	≤30mg/Nm³
9	Moisture content	≤40g/Nm³
