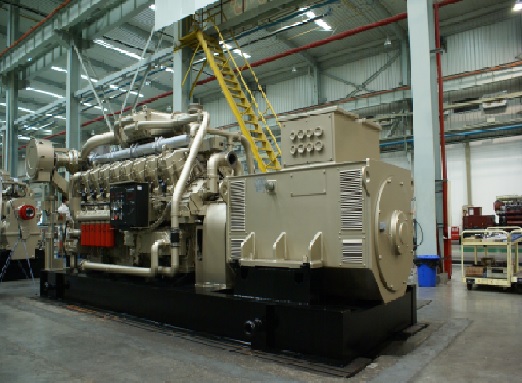

JDEC 16V190 natural gas engine is a strong competitor to the western brands. The main target of 16V190 engine is to replace the western brands while at a much lower cost.
Technical paratmeters
Generator Set
Type
1000GF-T
ekW
1000
ηel(%)
38
LxWxH(mm)
6004x2640x2545
Weight(kg)
21000
Engine
Type
JDEC H16V190ZLT-2
BorexStock(mm)
190x215
Displacement(L)
95.73
Speed (rpm)
1000(50Hz)
Speed (rpm)
1200(60Hz)
Starting Mode
24V DC Electric starting system
Cooling Type
Vertical fan water tank/heat exchanger/multiple fan water tank
Governing Type
Electronic governor
Alternator
Type
IFC6 series
Rated Voltage (V)
400/230
Current (A)
1804
Power Factor
0.8(Lagging)
Phase and Connection
3 phases 4 wire, Y-connection
Excitation
Brushless
V-regulator
Automatic
Control Panel
Feature
Powered by 24 volts DC , degree of protection IP54, lockable hinged door, start/stop control switch,Voltage adjustment
Data View
RPM, operating hours, total generating capacity, oil pressure, coolant temperature, DC voltage,Hz,ekW, frequency , voltage ,pf, exhaust temperature, Engine cylinder temperature,Speed
Protection Function
Low oil pressure; high coolant temperature; high oil temperature, overspeed, emergency stop, under/over voltage, under/over frequency, overcurrent reverse power,
