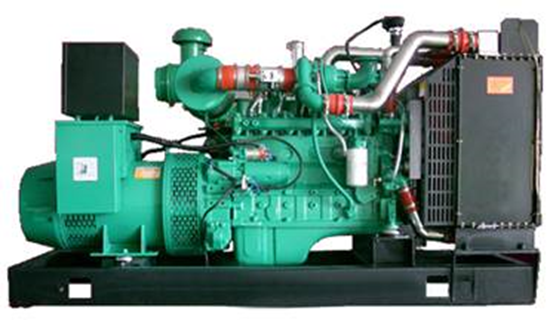

SDC series generator sets adopt Cummins series engine as the power source. It has characteristics of reliable operation and easy for purchasing spare parts. Our SDC series products win customers trust around the world.
Technical parameter
Generator Set
Type
SDC200-N
ekW
200
ηel(%)
38
LxWxH(mm)
3000x1005x1709
Weight(kg)
2800
Engine
Type
Cummins NT855
BorexStock(mm)
140x145
Displacement(L)
14
Speed (rpm)
1500(50Hz)
Speed (rpm)
1800(60Hz)
Starting Mode
24V DC Electric starting system
Cooling Type
Vertical fan water tank
Governing Type
Electronic governor
Alternator
Type
KF or equivalent
Rated Voltage (V)
400/230
Current (A)
361
Power Factor
0.8(Lagging)
Phase and Connection
3 phases 4 wire, Y-connection
Excitation
Brushless
V-regulator
Automatic
Control Panel
Feature
Powered by 24 volts DC , degree of protection IP54, lockable hinged door, start/stop control switch, Voltage adjustment
Data View
RPM, operating hours, total generating capacity, oil pressure, coolant temperature, DC voltage, Hz,ekW, frequency , voltage ,pf, exhaust temperature, Engine cylinder temperature,Speed
Protection Function
Low oil pressure; high coolant temperature; high oil temperature, overspeed, emergency stop, under/over voltage, under/over frequency, overcurrent reverse power,
