The engine is original natural gas engine which is from China’s biggest heavy-duty trucks manufacturer -- SINOTRUK. Engine’s technology is from German MAN. Sinotruk is fully authorized manufacturer.

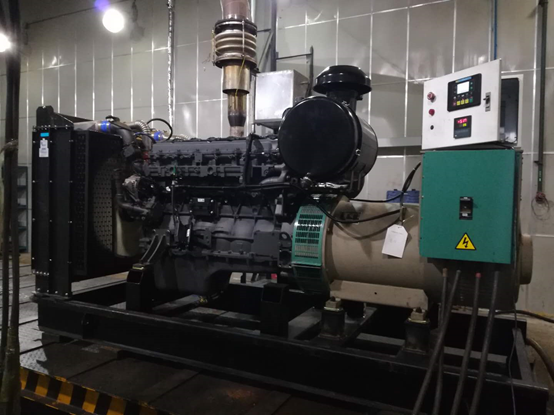

Technical Parameter of 300kw Natural Gas Generator Set
Generator Set
Type
SDM300-N
ekW
300
ηel(%)
39
LxWxH(mm)
3300x1670x2080
Weight(kg)
3100
Engine
Type
Sinotruk MT13
BorexStock(mm)
126x166
Displacement(L)
12.5
Speed (rpm)
1500/1500(50Hz)
Speed (rpm)
1800/1800(60Hz)
Starting Mode
24V DC Electric starting system
Cooling Type
Vertical fan water tank
Governing Type
Electronic governor
Alternator
Type
KF or equivalent
Rated Voltage (V)
400/230
Current (A)
541
Power Factor
0.8(Lagging)
Phase and Connection
3 phases 4 wire, Y-connection
Excitation
Brushless
V-regulator
Automatic
Control Panel
Feature
Powered by 24 volts DC , degree of protection IP54, lockable hinged door, start/stop control switch, Voltage adjustment
Data View
RPM, operating hours, total generating capacity, oil pressure, coolant temperature, DC voltage, Hz,ekW, voltage ,pf, exhaust temperature, Engine cylinder temperature
Protection Function
Low oil pressure; high coolant temperature; high oil temperature, overspeed, emergency stop, under/over voltage, under/over frequency, overcurrent,reverse power,
