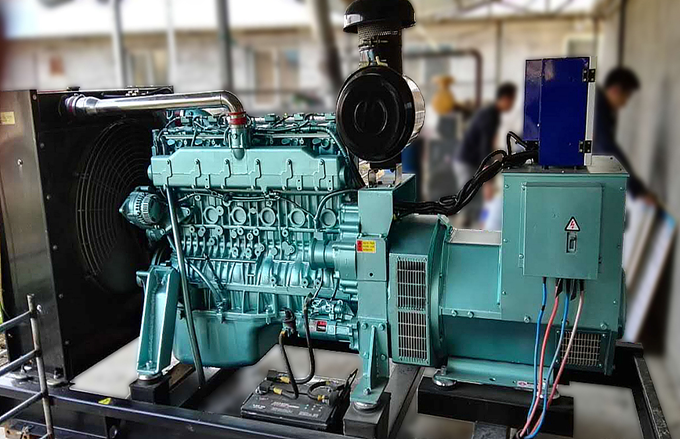

The engine is original natural gas engine which is from China’s biggest heavy-duty trucks manufacturer -- SINOTRUK. Engine’s technology is mature and reliable makes it enjoy a good reputation in the industry.
Technical Parameter of 250kw Gas Generator Set
Generator Set
Type
SDS250-N
ekW
250
ηel(%)
39
LxWxH(mm)
3150x1400x1880
Weight(kg)
2300
Engine
Type
Sinotruk T12
BorexStock(mm)
126x155
Displacement(L)
12
Speed (rpm)
1500/1500(50Hz)
Speed (rpm)
1800/1800(60Hz)
Starting Mode
24V DC Electric starting system
Cooling Type
Vertical fan water tank
Governing Type
Electronic governor
Alternator
Type
KF or equivalent
Rated Voltage (V)
400/230
Current (A)
451
Power Factor
0.8(Lagging)
Phase and Connection
3 phases 4 wire, Y-connection
Excitation
Brushless
V-regulator
Automatic
Control Panel
Feature
Powered by 24 volts DC , degree of protection IP54, lockable hinged door, start/stop control switch, Voltage adjustment
Data View
RPM, operating hours, total generating capacity, oil pressure, coolant temperature, DC voltage, Hz,ekW, voltage ,pf, exhaust temperature, Engine cylinder temperature
Protection Function
Low oil pressure; high coolant temperature; high oil temperature, overspeed, emergency stop, under/over voltage, under/over frequency, overcurrent,reverse power,
