SDC series generator sets adopt Cummins series engine as the power source. It has characteristics of reliable operation and easy for purchasing spare parts. Our SDC series products win customers trust around the world.

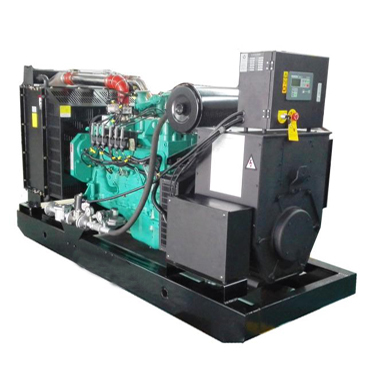

Technical Parameter of 100kw Gas Generator Set
Generator Set
Type
SDC100-N
ekW
100
ηel(%)
39
LxWxH(mm)
2460x950x1455
Weight(kg)
1480
Engine
Type
Cummins 6CT8.3
BorexStock(mm)
114x135
Displacement(L)
8.3
Speed (rpm)
1500(50Hz)
Speed (rpm)
1800(60Hz)
Starting Mode
24V DC Electric starting system
Cooling Type
Vertical fan water tank
Governing Type
Electronic governor
Alternator
Type
KF or equivalent
Rated Voltage (V)
400/230
Current (A)
180.4
Power Factor
0.8(Lagging)
Phase and Connection
3 phases 4 wire, Y-connection
Excitation
Brushless
V-regulator
Automatic
Control Panel
Feature
Powered by 24 volts DC , degree of protection IP54, lockable hinged door, start/stop control switch, Voltage adjustment
Data View
RPM, operating hours, total generating capacity, oil pressure, coolant temperature, DC voltage, Hz,ekW, voltage ,pf, exhaust temperature, Engine cylinder temperature
Protection Function
Low oil pressure; high coolant temperature; high oil temperature, overspeed, emergency stop, under/over voltage, under/over frequency, overcurrent,reverse power,
