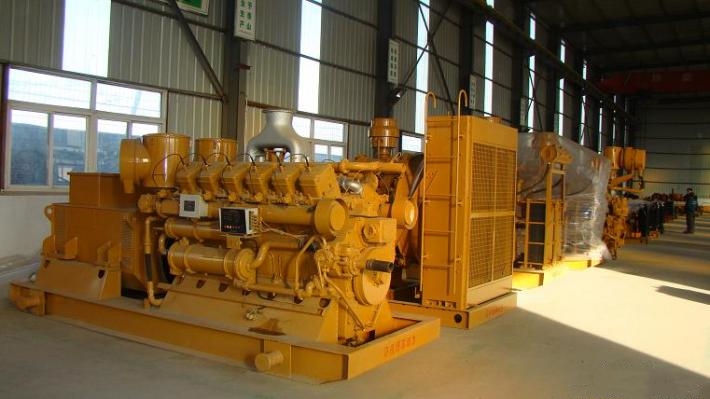

400GF-J syngas generator sets use JDEC 12V190 gas engine which has more than 50 years of operation experience. Reliable operation and low maintenance cost makes it popular in more than 100 countries around the world.
Technical parameter
Generator Set
Type
400GF-J
ekW
400
ηel(%)
38
LxWxH(mm)
5120x2040x2776
Weight(kg)
11800
Engine
Type
JDEC G12V190ZLDTW
BorexStock(mm)
190x210
Displacement(L)
71.45
Speed (rpm)
1000(50Hz)
Speed (rpm)
1200(60Hz)
Starting Mode
24V DC Electric starting system
Cooling Type
Closed water cooling
Governing Type
Electronic governor
Alternator
Type
1FC6 series
Rated Voltage (V)
400/230
Current (A)
721
Power Factor
0.8(Lagging)
Phase and Connection
3 phases 4 wire, Y-connection
Excitation
Brushless
V-regulator
Automatic
Control Panel
Feature
Powered by 24 volts DC , degree of protection IP54, lockable hinged door, start/stop control switch, Voltage adjustment
Data View
RPM, operating hours, total generating capacity, oil pressure, coolant temperature, DC voltage, Hz , ekW, voltage ,pf, exhaust temperature, Engine cylinder temperature
Protection Function
Low oil pressure; high coolant temperature; high oil temperature, overspeed, emergency stop, under/over voltage, under/over frequency, overcurrent, reverse power,
